SKU: CT128

BONTEC TV Wall Bracket Mount for most 13-43 Inch LED/LCD/OLED Flat TVs/Monitors, Swivel Tilt, Extendable & Retractable TV Wall Mount With Articulating Arms up to 35kg, Max VESA 200 x 200mm

BONTEC TV Wall Bracket Mount for most 13-43 Inch LED/LCD/OLED Flat TVs/Monitors, Swivel Tilt, Extendable & Retractable TV Wall Mount With Articulating Arms up to 35kg, Max VESA 200 x 200mm

Download Manual

For history version, please contact customer service.

View full details

Let's get into the nitty gritty details.

Product Introduction

Universal Compatibility: This heavy duty full-motion wall mount fits most 13" to 43" TVs or monitors up to 35 kg with VESA mounting holes spacing of 200x200mm, 200x100mm,100x100mm, and 75x75mm (Make sure the cable outlet won't be covered). Not compatible with 100x200mm.Tilt & Swivel Function: This wall mount features 5°up and -15°down tilting and +/-90°swivel (maximum swivel angle depends on TV size), allowing maximum flexibility for optimal viewing, providing smooth adjustment in all directions.Exquisite Tech & Application: The TV mount arm design constructed of heavy duty high-strength steel with maximum load capacity of up to 35 kg. Safe and sturdy, this mount fits solid concrete wall/ wood stud installation. Caution: This mount is not for installation on dry wall alone!Extendable & Retractable: Extended articulating TV bracket is equipped with full motion articulating arms that can retract 50mm from the wall for space saving and easy movement and can also extend up to 400 mm to improve flexibility.Easy & Fast Installation: Complete hardware, clear instruction manual, a spirit level and 5 cable ties are included, making it quick and easy to install the TV bracket.Please ensure the position where TV cable is will not be covered by the TV bracket.

Product Features

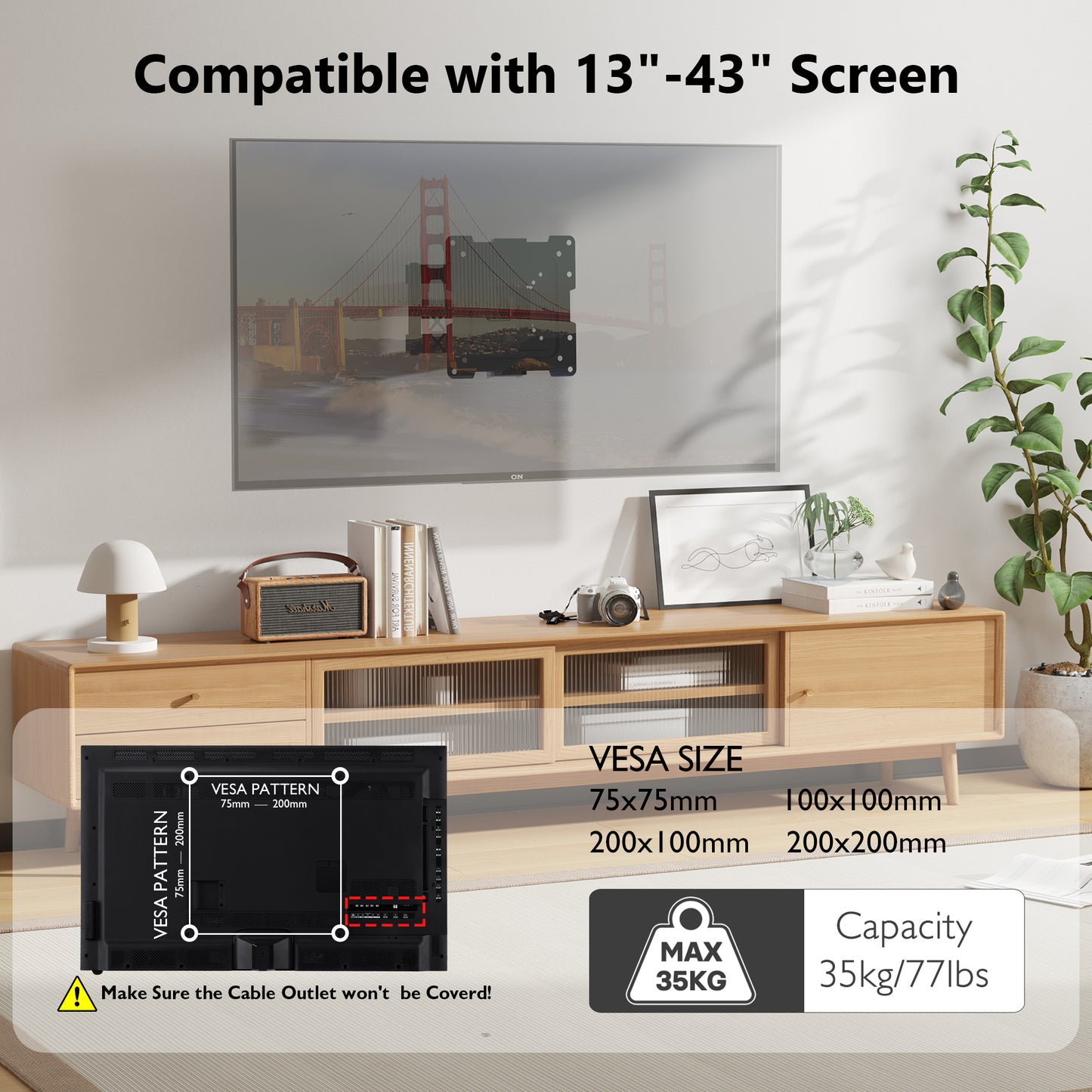

  • Universal Compatibility: This heavy duty full-motion wall mount fits most 13" to 43" TVs or monitors up to 35 kg with VESA mounting holes spacing of 200x200mm, 200x100mm,100x100mm, and 75x75mm (Make sure the cable outlet won't be covered). Not compatible with 100x200mm.

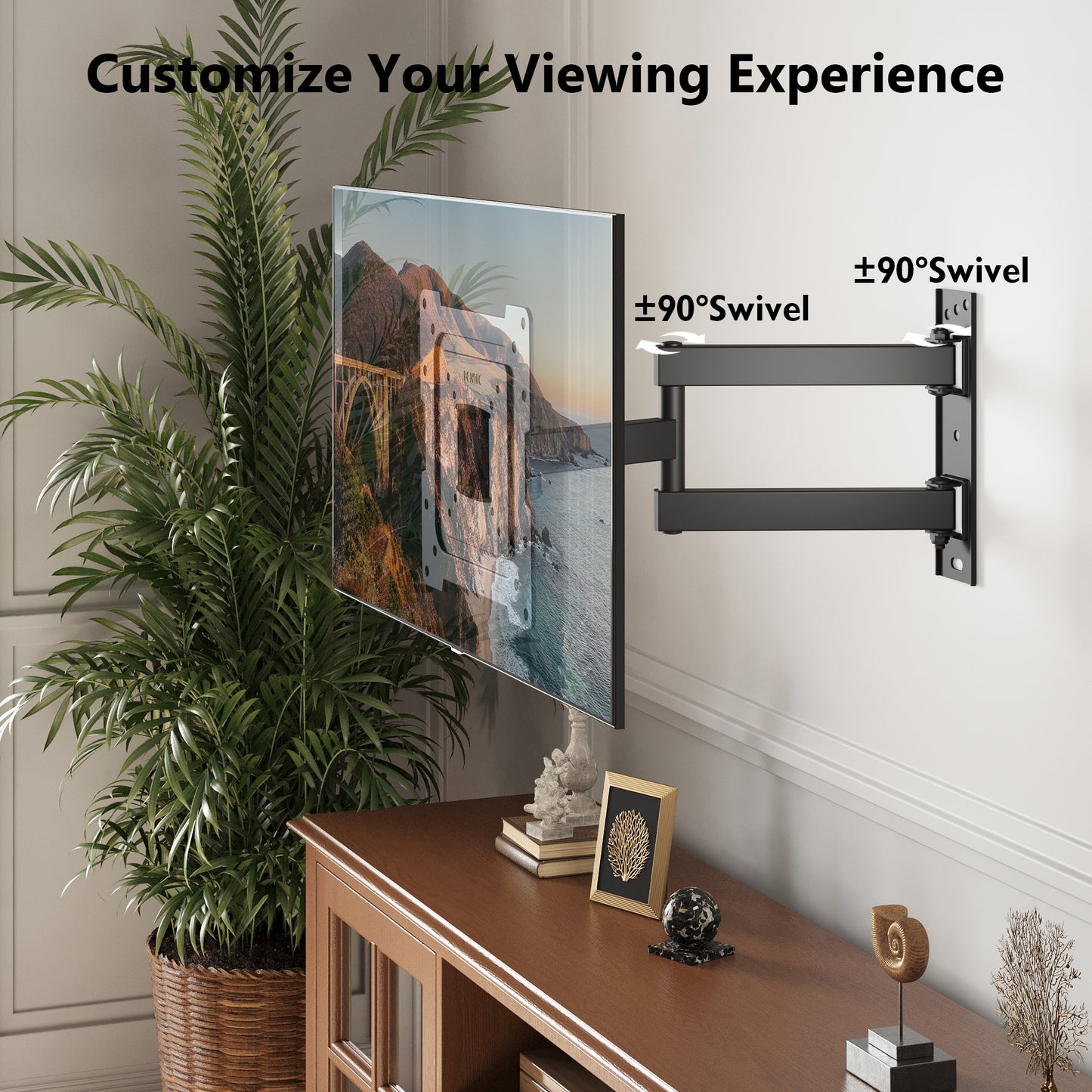

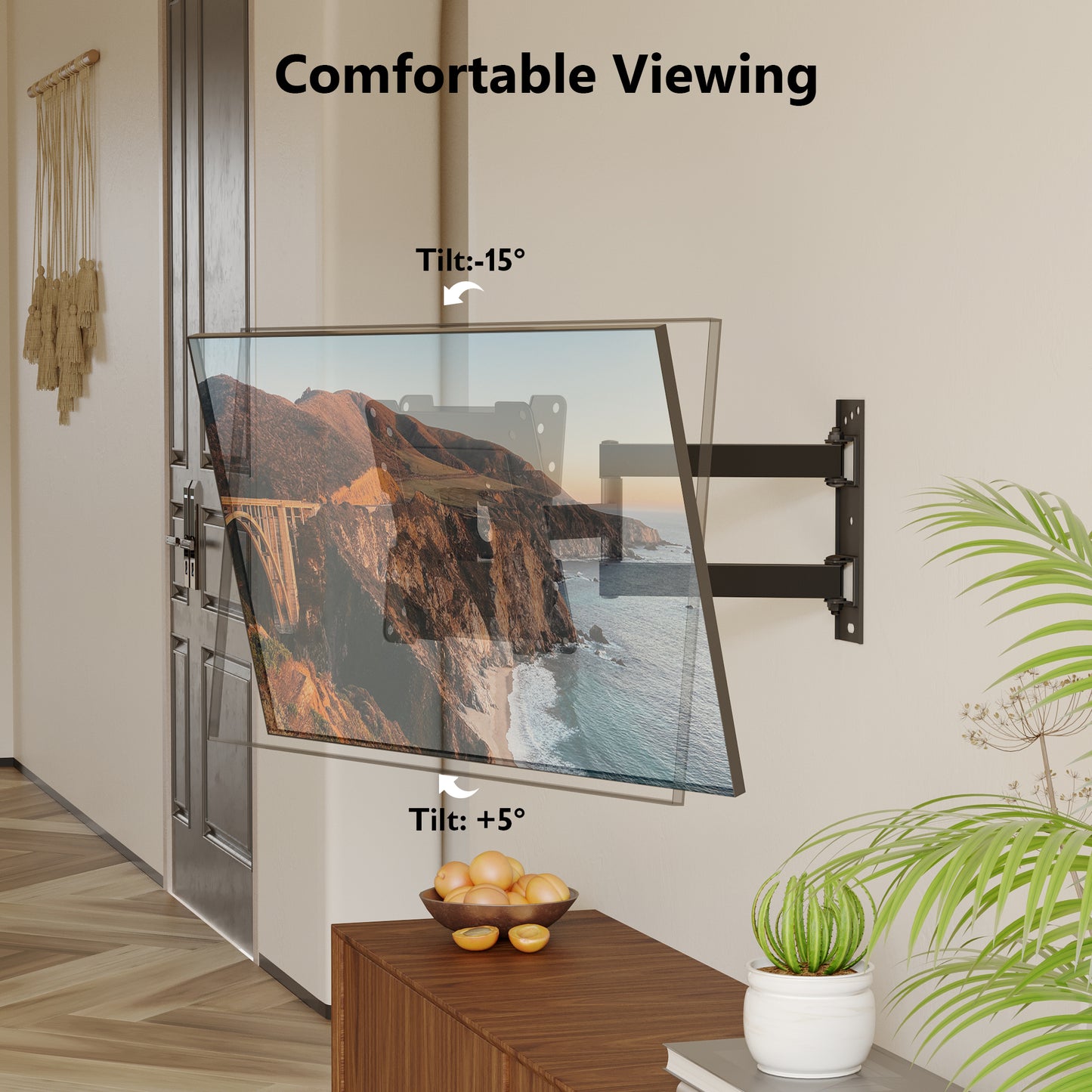

  • Tilt & Swivel Function: This wall mount features 5°up and -15°down tilting and +/-90°swivel (maximum swivel angle depends on TV size), allowing maximum flexibility for optimal viewing, providing smooth adjustment in all directions.

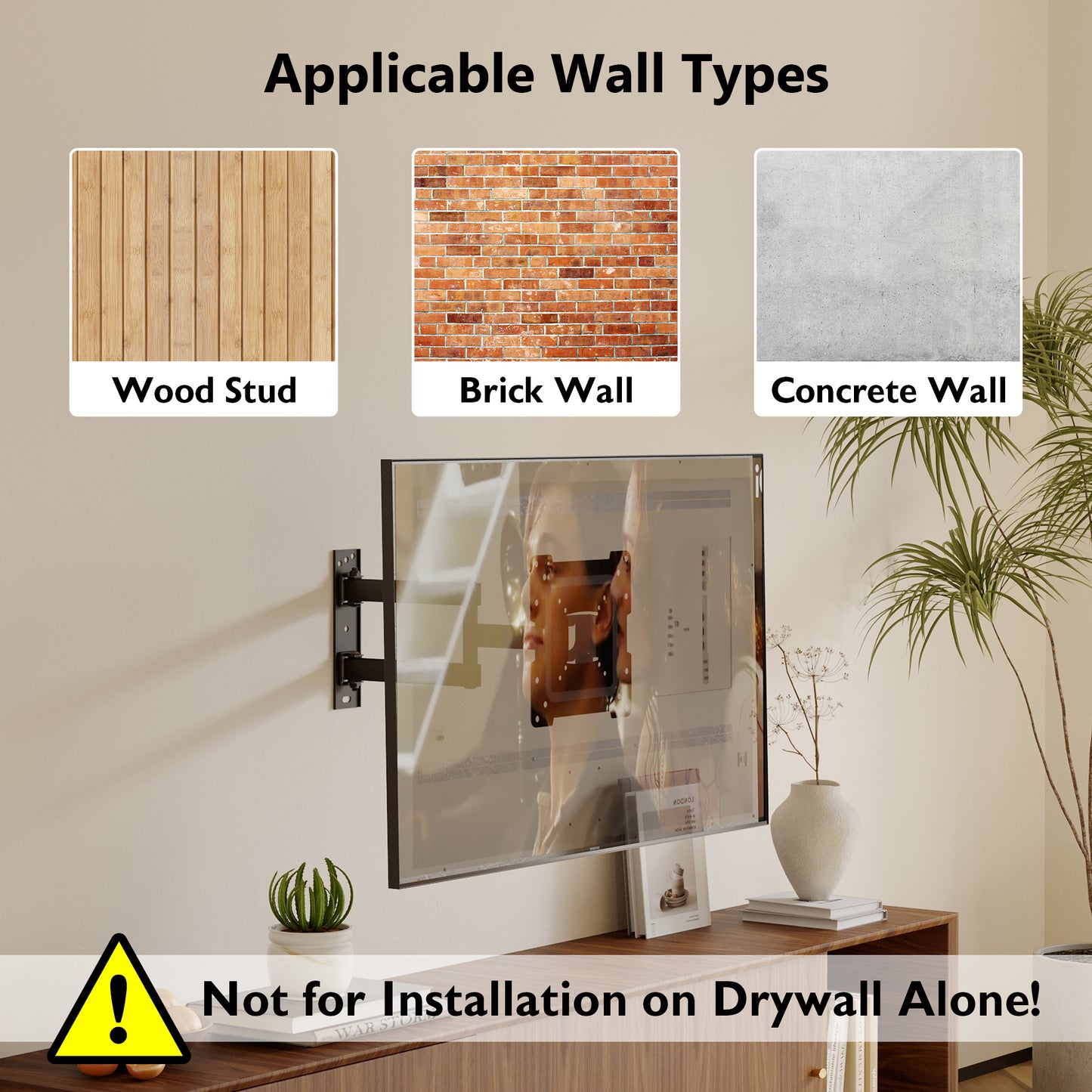

  • Exquisite Tech & Application: The TV mount arm design constructed of heavy duty high-strength steel with maximum load capacity of up to 35 kg. Safe and sturdy, this mount fits solid concrete wall/ wood stud installation. Caution: This mount is not for installation on dry wall alone!
  • Extendable & Retractable: Extended articulating TV bracket is equipped with full motion articulating arms that can retract 50mm from the wall for space saving and easy movement and can also extend up to 400 mm to improve flexibility.

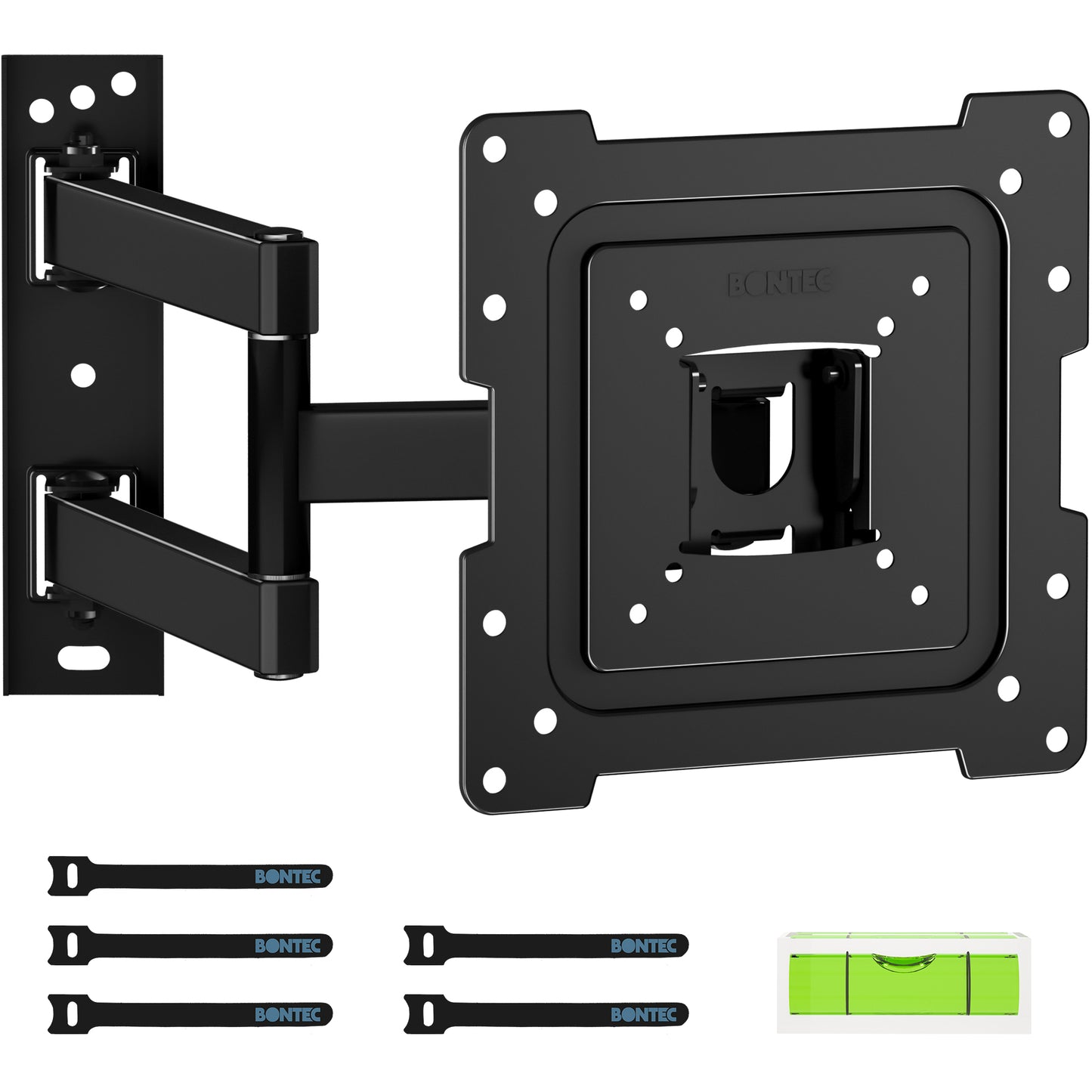

  • Easy & Fast Installation: Complete hardware, clear instruction manual, a spirit level and 5 cable ties are included, making it quick and easy to install the TV bracket.Please ensure the position where TV cable is will not be covered by the TV bracket.

Specifications

Max VESA: 200x200mm

Screen size: 13"-43"

Load Capacity: 35kg

Tilt:+5°to -15°

Swivel: +/-90°
